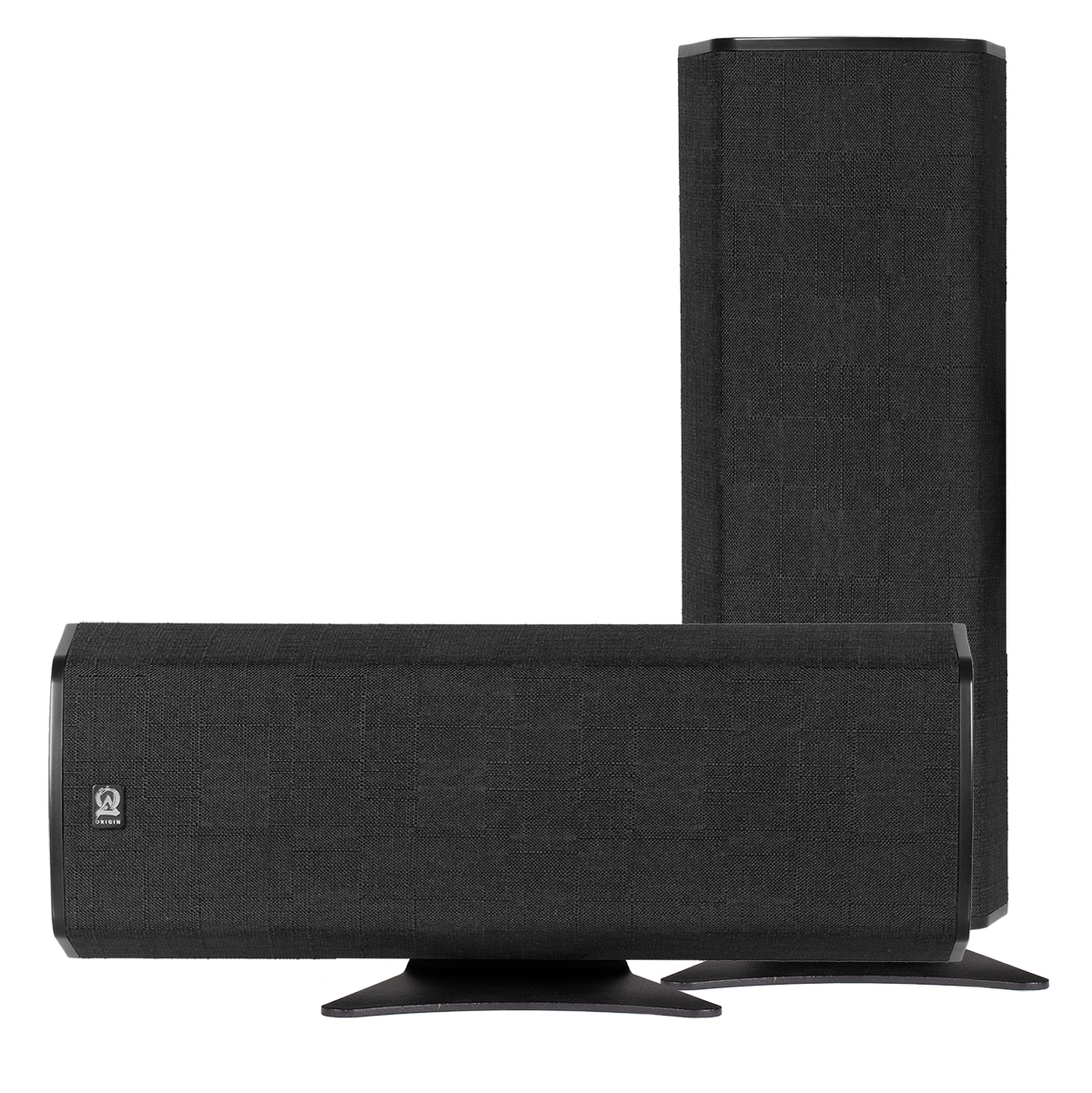

SOUNDBAR
Easy, Portable, Beautiful.
A slight departure from traditional architectural loudspeakers, soundbars are a new necessity. Simple to install, our passive soundbars are a massive improvement over your flat panel's internal audio system. Add a floor standing or architectural subwoofer, and you'll be enjoying your television like never before.
1-Channel Models
SBR41
Woofer: 1 x 3 ½" Fiber Glass
Tweeter: 1 x 1" Silk DPSD™
Frequency Response: 65 Hz - 20 kHz
Impedance: 4Ω per channel
Sensitivity: 90db
Height & Depth: 6" H x 2⁹⁄₁₆" D (152 H x 65 D mm)
Length: 11⅞" – 12⅞" [302 – 327 mm]
Mount: Wall-mount kit. Optional Vibration Isolation Stands.
SBR41-LCR
Woofer: 2 x 3 ½" Fiber Glass
Tweeter: 1 x 1" Silk DPSD™
Frequency Response: 65 Hz - 20 kHz
Impedance: 4Ω per channel
Sensitivity: 90db
Height & Depth: 6" H x 2⁹⁄₁₆" D (152 H x 65 D mm)
Length: 16¹⁄₁₆” – 17¹⁄₁₆” [409 – 434 mm]
Mount: Wall-mount kit. Optional Vibration Isolation Stands.
3-Channel Models
SBR43-85
Woofer: 6 x 3 ½" Fiber Glass
Tweeter: 3 x 1" Silk DPSD™
Frequency Response: 65 Hz - 20 kHz
Impedance: 4Ω per channel
Sensitivity: 90db
Height & Depth: 6" H x 2⁹⁄₁₆" D (152 H x 65 D mm)
Length: 73¹⁵⁄₁₆” – 74¹⁵⁄₁₆” [1880 – 1905 mm]
Mount: Wall-mount kit. Optional Vibration Isolation Stands.
SBR43-80
Woofer: 6 x 3 ½" Fiber Glass
Tweeter: 3 x 1" Silk DPSD™
Frequency Response: 65 Hz - 20 kHz
Impedance: 4Ω per channel
Sensitivity: 90db
Height & Depth: 6" H x 2⁹⁄₁₆" D (152 H x 65 D mm)
Length: 69⁷⁄₁₆” – 70⁷⁄₁₆” [1765 – 1790 mm]
Mount: Wall-mount kit. Optional Vibration Isolation Stands.
SBR43-75
Woofer: 6 x 3 ½" Fiber Glass
Tweeter: 3 x 1" Silk DPSD™
Frequency Response: 65 Hz - 20 kHz
Impedance: 4Ω per channel
Sensitivity: 90db
Height & Depth: 6" H x 2⁹⁄₁₆" D (152 H x 65 D mm)
Length: 65⅛” – 66⅛” [1654 – 1680 mm]
Mount: Wall-mount kit. Optional Vibration Isolation Stands.
SBR43-70
Woofer: 6 x 3 ½" Fiber Glass
Tweeter: 3 x 1" Silk DPSD™
Frequency Response: 65 Hz - 20 kHz
Impedance: 4Ω per channel
Sensitivity: 90db
Height & Depth: 6" H x 2⁹⁄₁₆" D (152 H x 65 D mm)
Length: 60¾” – 61¾” [1545 – 1570 mm]
Mount: Wall-mount kit. Optional Vibration Isolation Stands.
SBR43-65
Woofer: 6 x 3 ½" Fiber Glass
Tweeter: 3 x 1" Silk DPSD™
Frequency Response: 65 Hz - 20 kHz
Impedance: 4Ω per channel
Sensitivity: 90db
Height & Depth: 6" H x 2⁹⁄₁₆" D (152 H x 65 D mm)
Length: 56⁷⁄₁₆” – 57⁷⁄₁₆” [1435 – 1460 mm]
Mount: Wall-mount kit. Optional Vibration Isolation Stands.
SBR43-60
Woofer: 6 x 3 ½" Fiber Glass
Tweeter: 3 x 1" Silk DPSD™
Frequency Response: 65 Hz - 20 kHz
Impedance: 4Ω per channel
Sensitivity: 90db
Height & Depth: 6" H x 2⁹⁄₁₆" D (152 H x 65 D mm)
Length: 52⅝” – 53⅝” [1339 – 1364 mm]
Mount: Wall-mount kit. Optional Vibration Isolation Stands.
SBR43-55
Woofer: 2 x 3 ½" Fiber Glass
Tweeter: 1 x 1" Silk DPSD™
Frequency Response: 65 Hz - 20 kHz
Impedance: 4Ω per channel
Sensitivity: 90db
Height & Depth: 6" H x 2⁹⁄₁₆" D (152 H x 65 D mm)
Length: 48³⁄₁₆” – 49³⁄₁₆” [1225 – 1250 mm]
Mount: Wall-mount kit. Optional Vibration Isolation Stands.
SBR43-50
Woofer: 6 x 3 ½" Fiber Glass
Tweeter: 3 x 1" Silk DPSD™
Frequency Response: 65 Hz - 20 kHz
Impedance: 4Ω per channel
Sensitivity: 90db
Height & Depth: 6" H x 2⁹⁄₁₆" D (152 H x 65 D mm)
Length: 42¹⁄₁₆” – 43¹⁄₁₆” [1070 – 1095 mm]
Mount: Wall-mount kit. Optional Vibration Isolation Stands.
The Origin Advantage.
A blend of incredible sound quality and artistic design is what sets the loudspeakers at Origin apart. Having created the first, modern, in-wall speaker in 1976, the team at Origin has spent decades perfecting the concept. Today you can enjoy the result of this effort as we apply the most advanced technologies and materials to recreate music with unparalleled fidelity. The ability to fit larger speakers in smaller spaces and then pivot the speaker to focus the sound at the listening area are only two of the many innovations our engineers have pioneered. All of this happens behind a discreet grille that blends into your décor and delivers incredible sonic performance that appears to originate from thin air. Fill your life with the finest music and be confident in the fact that your speakers will continue to do so for years to come.
