PROFESSIONAL

COLLECTION

Origin Acoustics Professional Collection

The Professional Collection from Origin Acoustics elevates commercial audio with audiophile sensibilities and durable, integrator friendly design. The collection features premium nearly transparent transformers for full fidelity 70/100v listening, robust crossover networks and convenient connection points to ensure every installation is straight forward and sounds fantastic.

In-Ceiling Models

Our In-Ceiling Collection goes above and beyond the competition with integrator friendly features and overall musicality. Each model is a 2-way loudspeaker with a pivoting silk DPSD™ tweeter, utilizing Origin’s patented Multi-Motion Pivot™ for superior aiming and dispersion. With an integrated conduit lock, heavy-duty dog-ears, and secure euro-block connections, this series is ready for installation into even the most challenging commercial environments. Black and white, low-profile paintable grilles reduce ceiling visibility and are available in square or round.

  • DPSD™ & Multi-Motion Pivot™ Tweeter
  • Front Mounted 8 ohm, 70/100v Tap Switch w/ Premium Transformer
  • Bass Enhancing Woofer Ports
  • Phoenix Connector & Conduit Lock
  • Safety Strap Connection for Seismic Events
Origin PC80 angle 768x768

PC80

Part: SPC80000B, SPC80000W

Woofer: 8" IMPP

Tweeter: 1" Silk DSPD MMP

Power Handling (Program Power): 120 Watts

Power Handling (Continuous Pink Noise): 60 Watts

Frequency Response(-10db): 41Hz - 20kHz

Frequency Response (-3db): 60Hz - 20kHz

Nominal Coverage Angle: 100° Conical Coverage

Sensitivity: 92dB

Rated Maximum SPL: 112dB

Impedance: 6 Ohm/70V/100V

Transformer Taps: 70V - 60W, 30W, 15W, 7.5W | 100V - 60W, 30W, 15W

Diameter: 11 1/4" (286mm)

Cutout Diameter: 10 1/2" (266mm)

Grille Diameter: 11 5/8" (296mm)

Mounting Depth: 9 1/2" (242mm)

Feature: Metal Can, Zinc Plated

Colors: Black

SCP800000 1200x1200

PC60

Part: SPC60000B, SPC60000W

Woofer: 6 1/2" IMPP

Tweeter: 1" Silk DSPD MMP

Power Handling (Program Power): 80 Watts

Power Handling (Continuous Pink Noise): 40 Watts

Frequency Response(-10db): 50Hz - 20kHz

Frequency Response (-3db): 64Hz - 20kHz

Nominal Coverage Angle: 115° Conical Coverage

Sensitivity: 91dB

Rated Maximum SPL: 108dB

Impedance: 6 Ohm/70V/100V

Transformer Taps: 70V - 60W, 30W, 15W, 7.5W | 100V - 60W, 30W, 15W

Diameter: 9 5/8" (244mm)

Cutout Diameter: 8 13/16" (224mm)

Grille Diameter: 10" (254mm)

Mounting Depth: 8" (202mm)

Feature: Metal Can, Zinc Plated

Colors: Black

PC60S

Part: SPC60000B, SPC60000W

Woofer: 6 1/2" IMPP

Tweeter: 1" Silk DSPD MMP

Power Handling (Program Power): 80 Watts

Frequency Response(-10db): 54Hz - 20kHz

Frequency Response (-3db): 64Hz - 20kHz

Sensitivity: 87dB

Rated Maximum SPL: 108dB

Impedance: 6 Ohm/70V/100V

Transformer Taps: 70V - 60W, 30W, 15W, 7.5W | 100V - 60W, 30W, 15W

Diameter: 9 5/8" (244mm)

Cutout Diameter: 8 13/16" (224mm)

Grille Diameter: 10" (254mm)

Mounting Depth: 4 23/64” (110mm)

Feature: Metal Can, Zinc Plated

Colors: Black

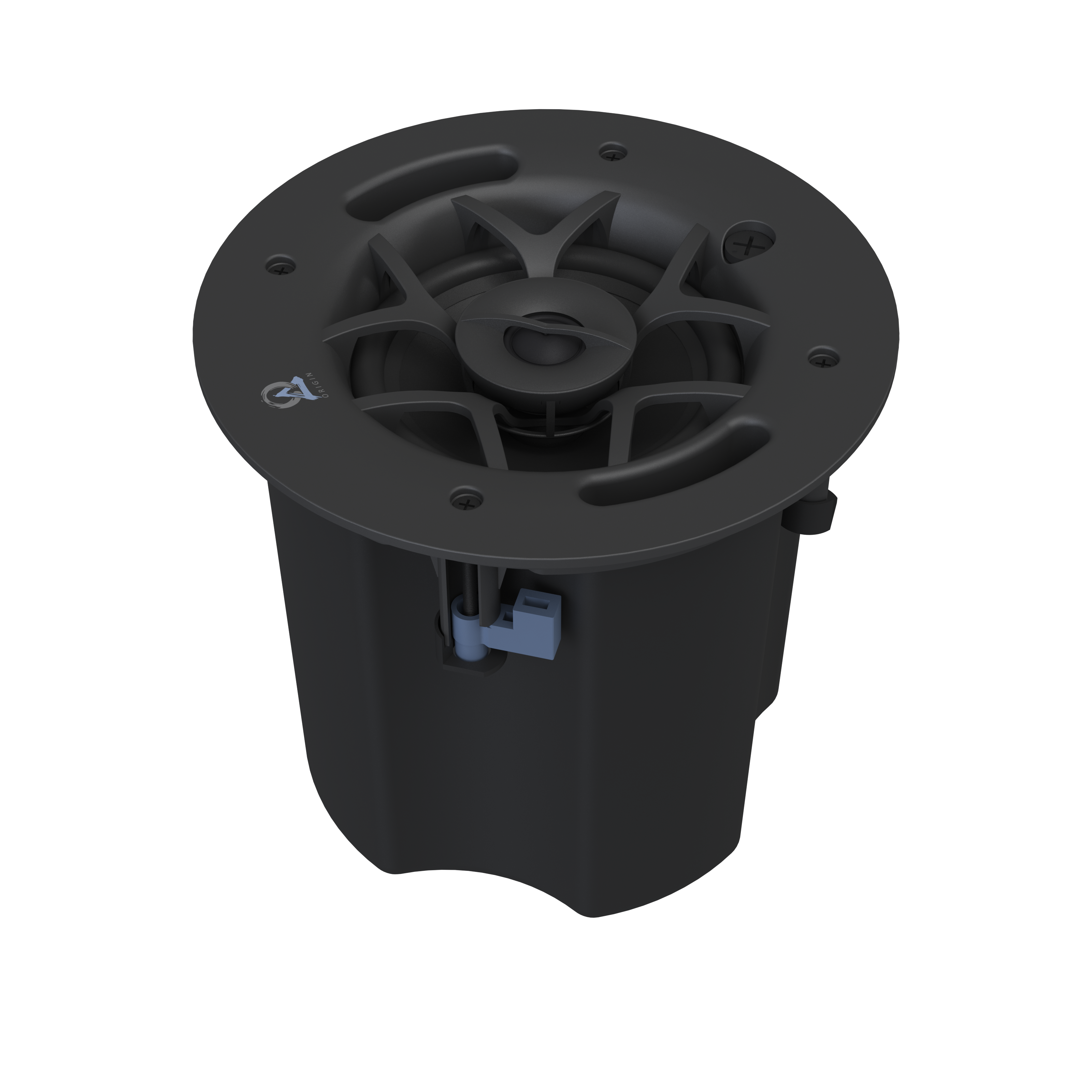

PC50

Part: SPC50000B, SPC50000W

Woofer: 5 1/4" IMPP

Tweeter: 3/4" Silk DSPD MMP

Power Handling (Program Power): 60 Watts

Power Handling (Continuous Pink Noise): 30 Watts

Frequency Response(-10db): 54Hz - 20kHz

Frequency Response(-3db): 80Hz - 20kHz

Nominal Coverage Angle: 120° Conical Coverage

Sensitivity: 89dB

Rated Maximum SPL: 106dB

Impedance: 6 Ohm/70V/100V

Transformer Taps: 70V - 60W, 30W, 15W, 7.5W, 3.75W | 100V - 30W, 15W, 7.5W

Diameter: 8 1/4" (210mm)

Cutout Diameter: 7 1/2" (190mm)

Grille Diameter: 8 11/16" (220mm)

Mounting Depth: 8" (202mm)

Feature: Metal Can, Zinc Plated

Colors: Black

PCSUB8

Part: SPCSUB80B, SPCSUB80W

Woofer: 8” IMPP

Power Handling (Program Power): 200 Watts

Power Handling (Continuous Pink Noise): 100 Watts

Freq. Response(-10dB): 39Hz - 20kHz

Freq. Response(-3dB): 55Hz - 20kHz

Nominal Coverage Angle: 180° Conical Coverage

Sensitivity: 91dB

Rated Maximum SPL: 110dB

Impedance: 6 ohm nominal

Transformer Taps: 70V - 100W, 50W, 25W, 12.5W | 100V - 100W, 50W, 25W

Diameter: 11 1/4" (286mm)

Cutout Diameter: 10 1/2" (266mm)

Grille Diameter: 11 5/8" (296mm)

Mounting Depth: 9 1/2" (242mm)

Feature: Metal Can, Zinc Plated

Colors: Black



PENDANT MODELS

By far the boldest loudspeaker available at its price point, our Commercial Collection Pendants provide superior bass and dispersion in an ultra-modern enclosure. The secret is our rear-facing tuned bass radiator that virtually doubles the cabinet size when it comes to low-end reproduction. We have the same premium transformers and silk DPSD ™ tweeters as the rest of our Commercial collection, ensuring a smooth, consistent sonic signature for all of your installs, regardless of style or placement. They come standard in black and white with three woofer/tweeter compliments and one subwoofer.

  • DPSD™ & Multi-Motion Pivoting™ Tweeter
  • Front Mounted 8 ohm, 70/100v Tap Switch w/ Premium Transformer
  • Phoenix Connector
  • Industry Standard Gripple® Cable Suspension (Not Shown)
  • Recessed Suspension Point
  • Modern Aesthetic Styling
  • Unique Rear Bass-Driving Passive Radiator

PP80

Part: SPP80000B, SPP80000W

Woofer: 8" (203mm) Polypropylene

Tweeter: 1" (25mm) Silk DSPD MMP

Power Handling (Program Power): 200 Watts

Power Handling (Continuous Pink Noise): 100 Watts

Freq. Response(-10dB): 42Hz - 20kHz

Freq. Response(-3dB): 57Hz - 20kHz

Nominal Coverage Angle: 110° Conical Coverage

Sensitivity: 90dB

Rated Maximum SPL: 110dB

Impedance: 8 ohm nominal

Transformer Taps: 70V - 60W, 30W, 15W, 7.5W | 100V - 60W, 30W, 15W

Diameter: 10" (254mm)

Length: 16 1/4" (412mm)

Feature: 8" Passive Radiator

Colors: Black, White

PP60

Part: SPP60000B, SPP60000W

Woofer: 6 1/2" ” (165mm) Polypropylene

Tweeter: 1” (25mm) Silk DSPD™ MMP™

Power Handling (Program Power): 130 Watts

Power Handling (Continuous Pink Noise): 65 Watts

Freq. Response(-10dB): 50Hz - 20kHz

Freq. Response(-3dB): 62Hz - 20kHz

Nominal Coverage Angle: 120° Conical Coverage

Sensitivity: 88dB

Rated Maximum SPL: 108dB

Impedance: 8 ohm nominal

Transformer Taps: 70V - 60W, 30W, 15W, 7.5W | 100V - 60W, 30W, 15W

Diameter: 8 1/4” (210mm)

Length: 12 5/16” (313mm)

Feature: 6 1/2” Passive Radiator

Colors: Black, White

PP50

Part: SPP50000B, SPP50000W

Woofer: 5 1/4" (133mm) Polypropylene

Tweeter: 1” (25mm) Silk DSPD™ MMP™

Power Handling (Program Power): 100 Watts

Power Handling (Continuous Pink Noise): 50 Watts

Freq. Response(-10dB): 57Hz - 20kHz

Freq. Response(-3dB): 75Hz - 20kHz

Nominal Coverage Angle: 120° Conical Coverage

Sensitivity: 87dB

Rated Maximum SPL: 105dB

Impedance: 8 ohm nominal

Transformer Taps: 70V - 30W, 15W, 7.5W, 3.75W | 100V - 30W, 15W, 7.5W

Diameter: 6 11/16” (170mm)

Length: 10.5” (267mm)

Feature: 5” Passive Radiator

Colors: Black, White

PPSUB8

Part: SPPSUB80B, SPPSUB80W

Woofer: 8" (203mm) Polypropylene

Power Handling (Program Power): 200 Watts

Power Handling (Continuous Pink Noise): 125 Watts

Freq. Response(-10dB): 40Hz - 250Hz

Freq. Response(-3dB): 55Hz - 250Hz

Nominal Coverage Angle: 180° Conical Coverage

Sensitivity: 90dB

Rated Maximum SPL: 110dB

Impedance: 8 ohm nominal

Transformer Taps: 70V - 120W, 60W, 30W, 15W | 100V - 120W, 60W, 30W

Diameter: 10” (254mm)

Length: 16 1/4” (412mm)

Feature: 8” Passive Radiator

Colors: Black, White

SURFACE MONITOR MODELS

Leave it up to our Weather Resistant POM mount to ensure these on-walls are always ideally aimed towards the action. These commercial on-wall loudspeakers come with X and Y-axis pivoting, to orientate the sound as desired. Better yet, they’re IPX4 rated for toughness, feature high-resolution aluminum tweeters, and are available in black or white finishes.

  • Mount with screw down end caps
  • Weather Resistant POM Plastic C- Bracket with vertical angle adjustments
  • Phoenix Connector
  • Front Mounted 8 ohm, 70/100v Tap Switch with Premium Transformer
  • Aluminum Tweeter
  • Bass Enhancing Woofer Ports
  • Paintable Removable Aluminum Grille
  • Black or White Finishes Available

PS80

Part: SSP80000B, SSP80000W

Woofer: 8'' IMPP

Tweeter: 1'' Aluminum

Power Handling (Program Power): 120 Watts

Power Handling (Continuous Pink Noise): 60 Watts

Freq. Response(-10dB): 42Hz - 20kHz

Freq. Response(-3dB): 58Hz - 20kHz

Nominal Coverage Angle: 70° Horizontal, 70° Vertical

Sensitivity: 92dB

Rated Maximum SPL: 107dB

Impedance: 8 ohm nominal

Transformer Taps: 70V - 80W, 40W, 20W, 10W | 100V - 80W, 40W, 20W

Dimensions: 9 1/2'' W x 9 3/16'' D x 14'' H (241 W x 233 D x 355 H mm) 15'' (381 mm) H with bracket

Colors: Black, White

PS60

Part: SSP60000B, SSP60000W

Woofer: 6 1/2'' IMPP

Tweeter: 1'' Aluminum

Power Handling (Program Power): 80 Watts

Power Handling (Continuous Pink Noise): 40 Watts

Freq. Response(-10dB): 45Hz - 20kHz

Freq. Response(-3dB): 65Hz - 20kHz

Nominal Coverage Angle: 100° Horizontal, 50° Vertical

Sensitivity: 92dB

Rated Maximum SPL: 106dB

Impedance: 8 ohm nominal

Transformer Taps: 70V - 60W, 30W, 15W, 7.5W | 100V - 60W, 30W, 15W

Dimensions: 7 7/8'' W x 8'' D x 12 1/4'' H (200 W x 203 D x 311 H mm) 13 1/4'' (336 mm) H with bracket

Colors: Black, White

PS50

Part: SSP50000B, SSP50000W

Woofer: 5 1/4" IMPP

Tweeter: 1" Aluminum

Power Handling (Program Power): 60 Watts

Power Handling (Continuous Pink Noise): 30 Watts

Freq. Response(-10dB): 55Hz - 20kHz

Freq. Response(-3dB): 74Hz - 20kHz

Nominal Coverage Angle: 100° Horizontal, 50° Vertical

Sensitivity: 89dB

Rated Maximum SPL: 105dB

Impedance: 8 ohm nominal

Transformer Taps: 70V - 30W, 15W, 7.5W, 3.8W | 100V - 30W, 15W, 7.5W

Dimensions: 6 3/4'' W x 7'' D x 10'' H (171 W x 178 D x 254 H mm) 11'' (279 mm) H with bracket

Colors: Black, White

The Origin Advantage.

A blend of incredible sound quality and artistic design is what sets the loudspeakers at Origin apart. Having created the first, modern, in-wall speaker in 1976, the team at Origin has spent decades perfecting the concept. Today you can enjoy the result of this effort as we apply the most advanced technologies and materials to recreate music with unparalleled fidelity. The ability to fit larger speakers in smaller spaces and then pivot the speaker to focus the sound at the listening area are only two of the many innovations our engineers have pioneered. All of this happens behind a discreet grille that blends into your décor and delivers incredible sonic performance that appears to originate from thin air. Fill your life with the finest music and be confident in the fact that your speakers will continue to do so for years to come.
