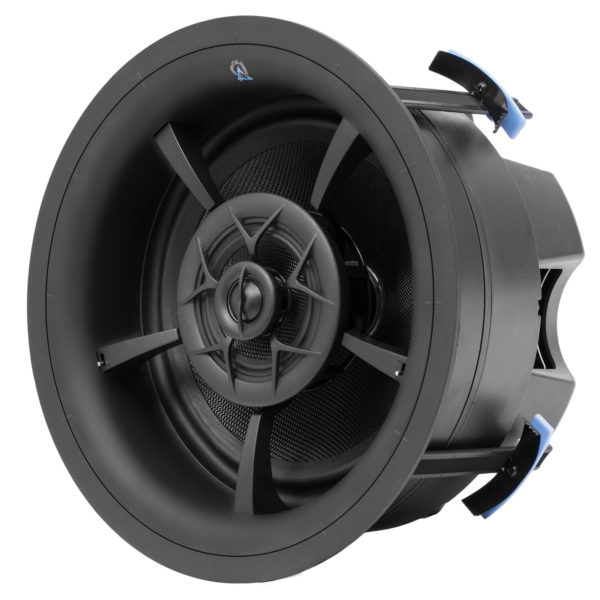

Director D109 In-Ceiling Loudspeaker

Director 10″ Series – Fully Pivoting 3-Way In-Ceiling Loudspeaker with a 10″ Kevlar Woofer, Exclusive DSPD Tweeter Technology, and Tool-Less Installation.

– Kevlar Woofer & Midrange

– Two-Way Pivoting Mid and Tweeter

– Silk DPSD Tweeter

– Tool-less Installation

SKU: SCD100900 Category:

Description

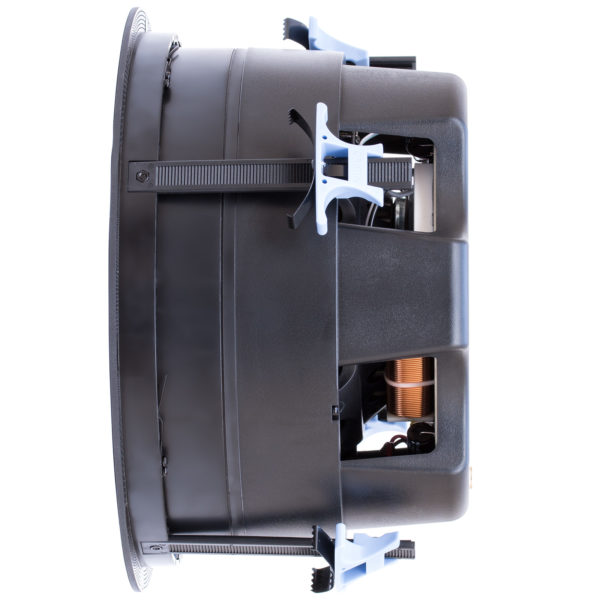

Tool-Less Installation

Interchangeable, secure, elegant. This is the way in-ceiling loudspeakers are meant to be installed. The Director Collection utilizes our tool-less mounting system to provide secure installation in any ceiling. The spring-loaded clips with multiple points of contact ensure the weight is distributed more evenly than traditional dog-legs which protects your ceiling and decreases unwanted vibration transfer.

More Bass. Less Space.

Our 10″ in-ceiling loudspeakers have the smallest cut-out of any 10″ on the market. In fact, it’s the same size as old-school 8″ in-ceiling cutouts. So by choosing our 100 Series loudspeakers, you are able to effectively have more bass, in less space.

Tri-Linear Configuration (TLC)

Simply put, the TLC is Origin Acoustics’ 3-way in-ceiling loudspeaker design. With an elegant stacked system of transducers, we’ve increased the pivot of the loudspeaker so you can hear every detail, just like if the speaker was right in front of you.

Dual Plane Stabilized Diaphragm (DPSD™)

A patented tweeter design that improves high-frequency performance, the DPSD™ radiator uses a unique suspension design that prevents distortion and increases loudness. The suspension is attached at both the voice-coil and the peak of the dome allowing the driver to be crossed over at a much lower frequency. This results in improved dispersion and decreased distortion.


X-Wave Woofer Surround

When a speaker cone reaches its limit of movement and comes to a hard stop, unwanted waves ripple up and down the cone. This is much like a wave hitting the edge of a pool and reflecting back in the center of the water. Our X-Wave Woofer Surround progressively absorbs that impact, preventing unwanted sonic distortion and improving the overall fidelity of the loudspeaker.

Compression Molded Woofer Baskets

Using time tested and true technique of compression molding, we are able to design and produce woofer baskets that are both highly stable and acoustically neutral. The end result is a reduction in distortion without coloration from the basket itself.

Magnetic Grille

A paintable, perforated grille with a micro bezel covers the entire speaker assembly and leaves a discreet finished appearance. Its magnetic attachment makes removing or replacing the grille fast and easy.

Additional information

Sensitivity

93dB +/- 3dB

Frequency Response

25Hz-20kHz

Nominal Impedance

6-ohm

Tweeter Size

1"

Tweeter Material

Silk DPSD

Midrange Size

4"

Midrange Material

Kevlar™

Woofer Size

10"

Woofer Material

Kevlar™

Mounting Depth

6.22" (158mm)

Cutout Diameter

10.375" (264mm)
