Director D63 In-Ceiling Loudspeaker

Director 6″ Series – 2-Way In-Ceiling Loudspeaker with a 6.5″ IMG Woofer, Pivoting Aluminum Tweeter and Tool-Less Installation.

– IMG Woofer

– Pivoting Tweeter

– Tool-less Installation

– IPX6 Rating

SKU: SCD63000 Category:

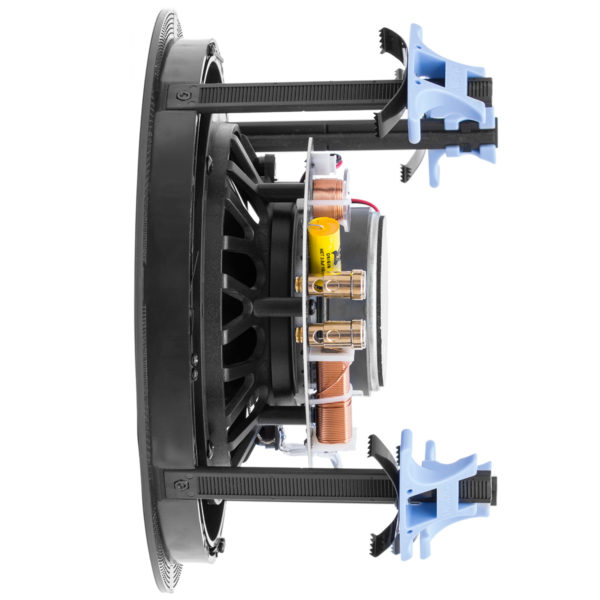

Tool-Less Installation

Interchangeable, secure, elegant. This is the way in-ceiling loudspeakers are meant to be installed. The Director Collection utilizes our tool-less mounting system to provide secure installation in any ceiling. The spring-loaded clips with multiple points of contact ensure the weight is distributed more evenly than traditional dog-legs which protects your ceiling and decreases unwanted vibration transfer.

X-Wave Woofer Surround

When a speaker cone reaches its limit of movement and comes to a hard stop, unwanted waves ripple up and down the cone. This is much like a wave hitting the edge of a pool and reflecting back in the center of the water. Our X-Wave Woofer Surround progressively absorbs that impact, preventing unwanted sonic distortion and improving the overall fidelity of the loudspeaker.

Compression Molded Woofer Baskets

Using time tested and true technique of compression molding, we are able to design and produce woofer baskets that are both highly stable and acoustically neutral. The end result is a reduction in distortion without coloration from the basket itself.

Magnetic Grille

A paintable, perforated grille with a micro bezel covers the entire speaker assembly and leaves a discreet finished appearance. Its magnetic attachment makes removing or replacing the grille fast and easy.

Weather Proof

With an IPX6 rating, the entire Director Collection is ready for installation into a wet environment. This rating ensures that your loudspeakers are safe from the corrosion and internal damage commonly posed by exposure to moisture. We believe in these so much, they’re back by a lifetime warranty.

Additional information

Sensitivity

91dB +/- 3dB

Frequency Response

48Hz-20kHz

Nominal Impedance

6-ohm

Tweeter Size

1"

Tweeter Material

Aluminum

Woofer Size

6.5"

Woofer Material


Mounting Depth

3.72" (94mm)

Cutout Diameter

8.75" (222mm)

Director 60 Series Datasheet

Download

Director 60 Series Line Drawings

Download
