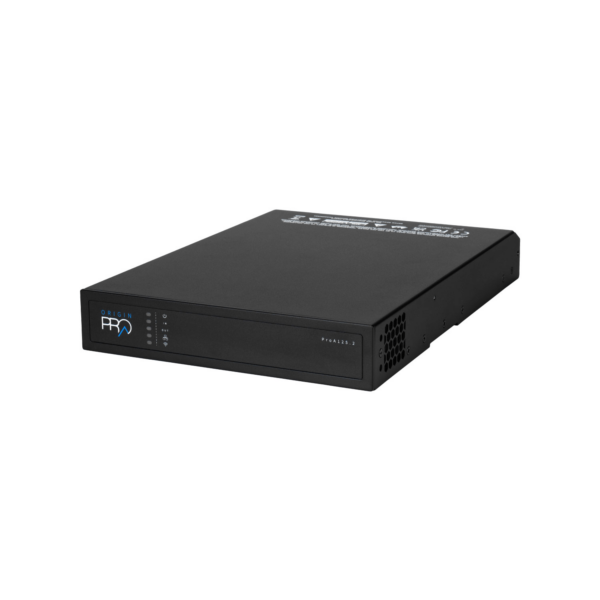

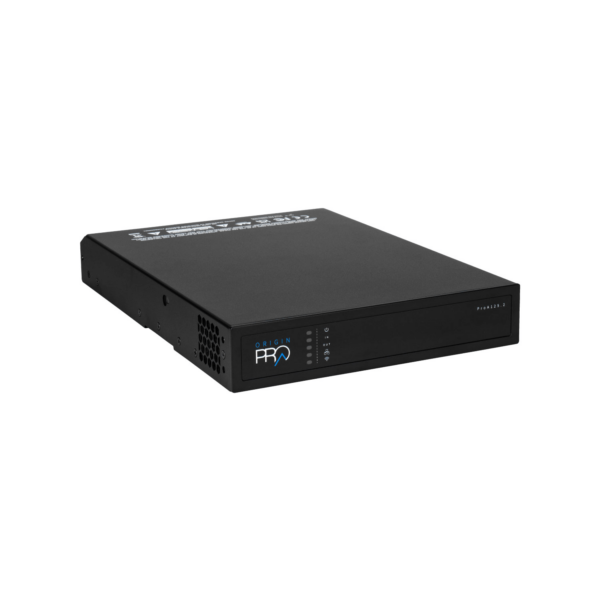

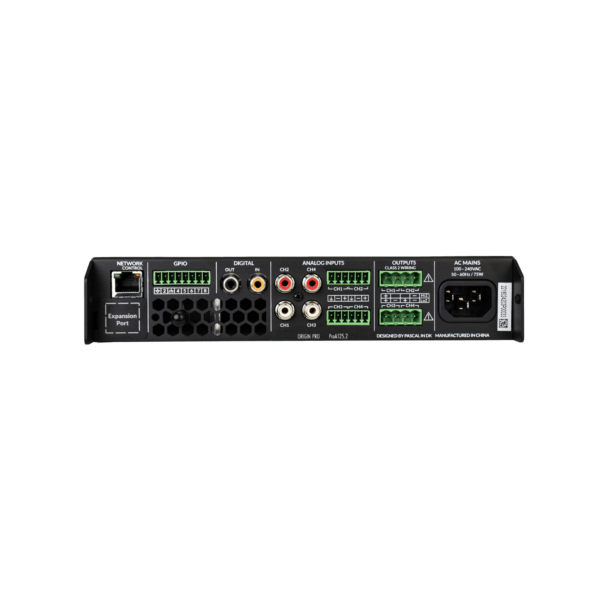

PROA125.2 Amplifier

The PROA125.2 from Origin PRO is a 4-channel 125 Watt amplifier.



The Origin PRO 1U amplifiers offer a combination of small size and high power per channel flexibility, making them ideal for installing in commercial applications which demand a variety of outputs. The required power can be utilized where needed – with both Hi-Z and Lo-Z simultaneously, to fit all needs, and all easily set up through the Origin PROTM amplifier web app user interface. Personalize your system to deliver the power required, with 1-2 channels in Hi-Z or 2-4 in Lo-Z to cover any room size.



Origin PRO Amplifiers are backed up with a 5-year warranty.

Category:

Description

The PROA125 & PROA250 amplifiers are 1U Class-D amplifiers, ideal for installer projects with particular space restraints that nonetheless still require high performance, offering both exceptionally compact half-rack design (2 and 4 Channel Series) and advanced audio output.   Meanwhile, our robust Origin PRO amplifier web app arrives built into the amp, to offer a fully personalized DSP configuration for any audio/voice system in a context requiring the most advanced multi-zone audio setup. Quickly accessed from any device or browser, the Origin PRO interface directly links to the amp’s own Wi-Fi or RJ45 network port, and navigation through the seamless user interface will allow the most complex system to be set up effortlessly in minutes.   State-of-the-art technology makes it a piece of cake to create your unique configurations while efficiently integrating the most demanding audio/voice systems. Capable of reliably handling numerous DSP configurations, while offering an extensive scope of tuning capabilities and features: the app enables multi-zone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker management and presets, delay, wall controller configuration, sine generator, and more.

Additional information

Channels

4 x lo-Z / 2 x Hi-Z

Output Power @ 4Ω

4 x 60 W

Output Power @ 8Ω

4 x 60 W

Output Power @ 70V

2 x 125 W

Output Power @ 100V

2 x 125 W

Powersharing (up to) across all channels

1 x 250 W

Power Consumption

75 W

Dimensions

44 x 220 x 213 mm (1.7 x 8.7 x 8.4 in)

Weight

2kg (4.4 lbs)

Total System Power

250 W
